Excellent electrical insulation and heat resistanceHigh Insulation Adhesive Tape iCas HIT Series
Thermosetting type adhesive tape with excellent electrical insulation and heat resistance iCas HIT series
The iCas HIT series is an adhesive tape with excellent breakdown strength for high current and high voltage.
Polyimide film is used as substrate, and a highly insulating heat-setting adhesive, designed by TOMOEGAWA, is coated.
It is recognized for its high reliability and has been used for many years in the semiconductor field.
In addition, since it can be provided as a thin film, it is a solution that contributes to improving the heat dissipation and sensor sensitivity of electronic components.
Application
| Type | Part Names | PI substrate thickness（um） | adhesive thickness(um) |
|---|---|---|---|
| Single-sided type | HIT-S2520 | 25 | 20 |
| Single-sided type | HIT-S2510 | 25 | 10 |
| Single-sided type | HIT-S5010 | 50 | 10 |
| Double-sided type | HIT-D5010 | 50 | 10 |
| Double base material type | KR1S | 12.5/12.5 | 20/20 |
Application

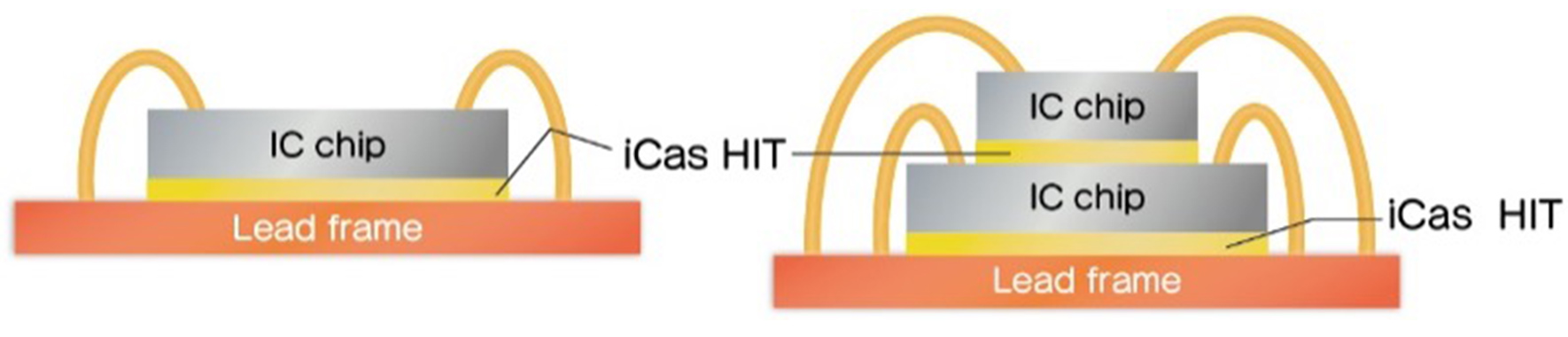

- Ensure insulation in between IC chips and between lead frames and IC chips

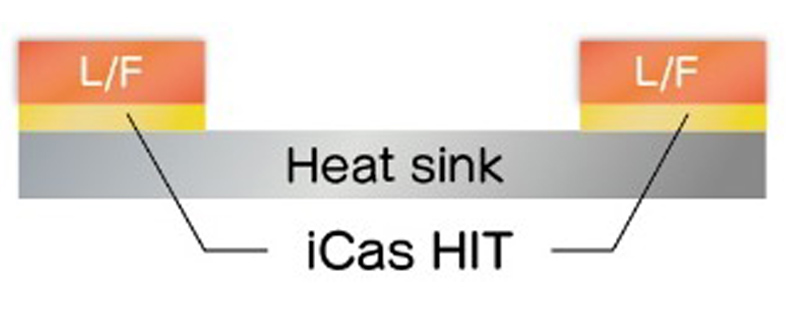

- Connecting of lead frame and heat sink
- Fixing and insulation of electrical and electronic components, precision parts, equipment jigs, etc.

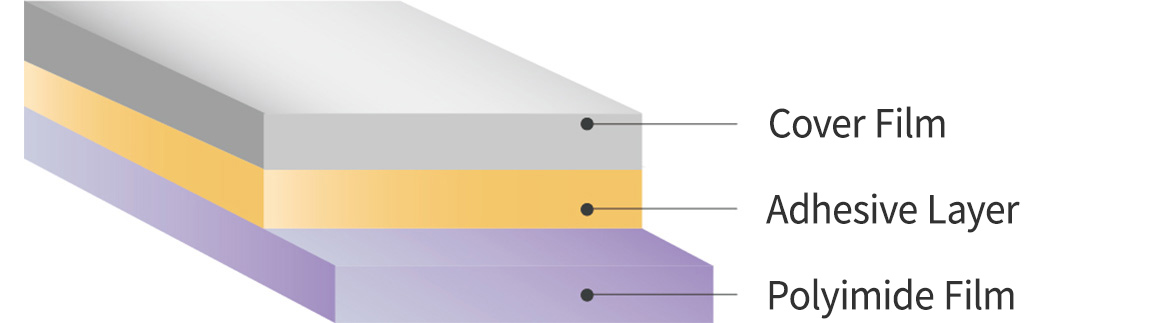

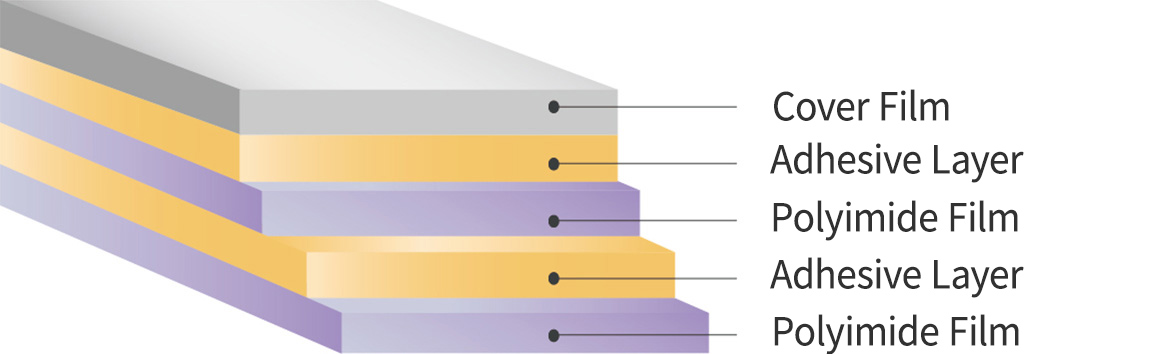

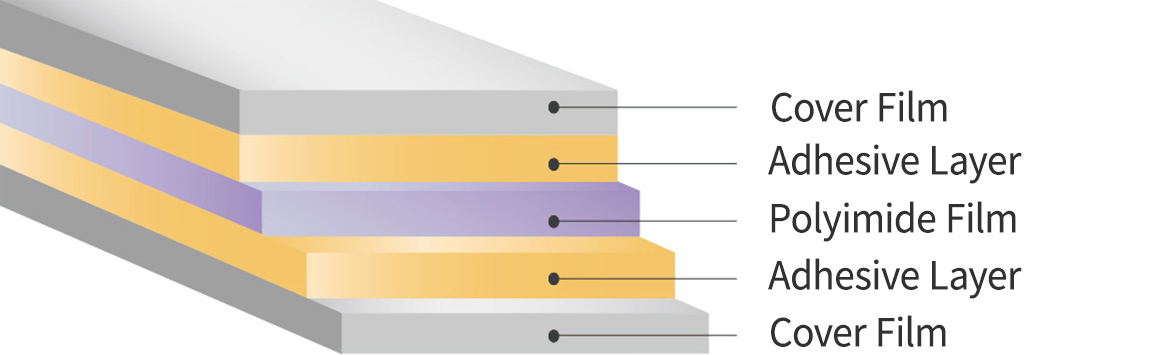

Layer Structure
