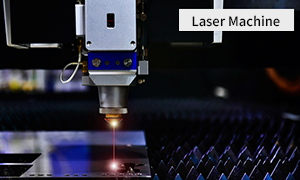

Precision
Cutting

High precision cutting suitable for materials

■Process: laser, punching, slitting etc.

■Dimensional accuracy: ± 100 μm (laser example)

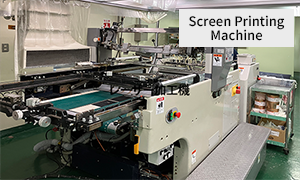

Pattern
Processing

Optionally patterning of functional paint

■Process: Screen printing, dispenser, intermittent coating

■Processing width: L/S 100μm (screen printing example)

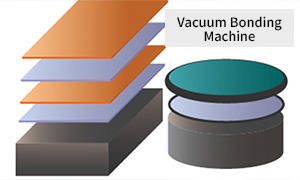

Vacuum
lamination

No void lamination by Vauum laminator

■Maximum press temperature: 150 °C

■Maximum press pressure: 0.5 MPa

Finishing Process

Special treatment such as dry polishing, baking, and cleaning

■ Polishing: Heat and heat resistance 250°C, Ra 0.1 or less, no water required

■ Calcining: reduced atmosphere 1100°C　■ Cleaning: ultrasonic type

Mounting
Inspection

Supports both module mounting and inspection

■ Mounting: Wiring, housing processing

■ Inspection: appearance inspection, operation inspection, component analysis
