New ProductsSealing tape HT56 for insert molding

Improving sealability and adhesion between metals and resins for integral molding such as insert molding.

Our sealing tapes for insert molding can be used in the integral molding of resin and metal, such as insert molding, to improve sealing ability and adhesion between metals and resin.


Feature 1Sealability and adhesion can be improved by attaching tape, thereby contributing to simplify processes

"Insert molding" is a type of plastic molding and is a technology that makes it possible to make products that integrate insert materials such as metals and resin.
Problem of insert molding are low bonding strength between insert materials and resins, and vulnerable to moisture infiltration.
The most common countermeasures against this problem have been to modify metal surfaces and apply adhesives.
However, these methods had to be pre-treated and potted separately from the molding process.


Our sealing tape for insert molding can be improved by simply applying the tape to the insert material and molding it with resin.
In addition, temporary bonding with metal insert materials is possible at room temperature, eliminating the need for post-processing such as aging.
Therefore, it is a solution that contributes to simplifying the insert molding process.

Feature 2Can be used in a variety of thermoformed products

Our sealing tape for insert molding can be used not just for injection molding, but also for various resin molding methods such as SMC.
The propety of product has a mechanism that uses heat generated during resin molding to improve sealing and adhesion, so it can be applied to various molding methods such as integrated molding of prepreg and metal.

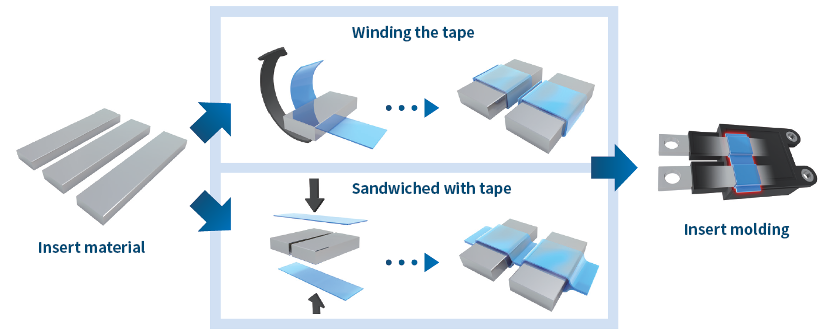

【Processing image】

Feature 3Applicable to various materials

The following is an example of an applicable materials.

Metal Aluminum, stainless steel, copper, steel etc.
Resin PPS / PBT / PA etc.

Application

  • Improving sealability of insert molded products such as connectors, bus bars, and terminal blocks.
  • Improved adhesion of resin and metal composite parts such as car interior panels.

* As this product is an under development product, characteristic data are not disclosed to the public. Please contact us from the inquiry form for more information.
