Display ProductsTransparent adhesion for optics(TA-series)
With a long track record,it is highly trusted for its transparency and endurance.
Adhesive films for optics is adhesive films that give each layer of various displays a function according to your needs.While maintaining a high degree of transparency, Tomekawa's advanced blending technology fuses light-controlled microparticles within the film while using precision coating technology to create a uniform coating.It is possible to improve the display quality and functionality of the display.

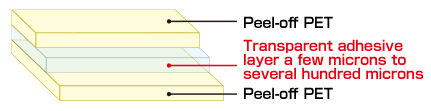

With the diversification of the structure of display materials, the demand for an adhesive layer is increasing daily.TOMOEGAWA provides high quality adhesives that are highly transparent and can endure the harshest of environments.We have a lineup of high-adhesion type, low-adhesion type, and acid-free products that can be customized according to your needs.The film thickness can be adjusted from a few microns to several hundred microns.

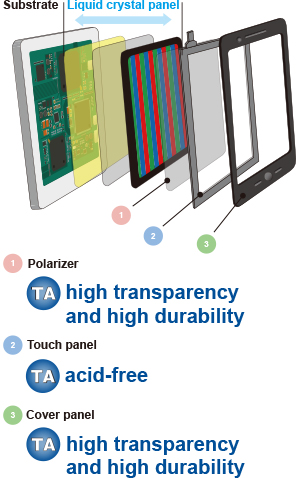

Usages
- Anti-reflection film/covering film/adhesive for shatterproof film
- Adhesive for ITO (transparent electrode) film
We have many years of experience in using our products for TVs, smartphones, and automotive displays
List of products
※The data are actual values, not a guarantee.
※Measurement configuration 100μmPET/PSA/1.8 glass
| Characteristic items | High peeling strength type | ||||
|---|---|---|---|---|---|
| Product ID | TD06 | MK64 | TI14 | ME57 | |
| Characteristics | High durability High elasticity |
High durability Acid- free |
High durability Acid- free |
High durability Acid- free |
|
| Thickness [um] | 25 | 25 | 25 | 25 | |
| Adhesive strength [N/25mm] | 28 | 29 | 25 | 25 | |
| Transmittance rate [%] | 90 | 91 | 90 | 90 | |
| Haze [%] | 0.7 | 0.7 | 0.5 | 0.4 | |
| Durability | 105℃ x 1000hrs. | OK | OK | OK | OK |
| 80℃ x 1000hrs. | OK | OK | OK | OK | |
| 60℃90%RH x 1000hrs. | OK | OK | OK | OK | |
| 85℃85%RH x 1000hrs. | OK | OK | × | OK | |
| -40℃ x 1000hrs. | OK | OK | OK | OK | |
| Recommended objects | PET, glass, TAC, COP | PET, glass, TAC | PET, glass | PET, glass | |
|
Usages |
LCD, in-vehicle | LCD, in-vehicle | LCD, in-vehicle, Touch panel |
Touch panel | |
| Property | Low peeling strength type | Water-adhered type | |||
|---|---|---|---|---|---|
| Product ID | TX48 | MJ63 | MG70 | MF58 | |
| Characteristics | High elasticity Reworkability |
Acid- free Reworkability |
Minimal adhesion Heat-resistant |
Workability of Water Pasting | |
| Thickness [um] | 25 | 25 | 20 | 12 | |
| Adhesive strength [N/25mm] | 4 | 7 | 0.1 | 8 | |
| Transmittance rat [%] | 90 | 92 | - | 90 | |
| Haze [%] | 0.4 | 0.6 | - | 0.7 | |
| Durability | 105℃ x 1000hrs. | OK | OK | - | - |
| 80℃ x 1000hrs. | OK | OK | OK | OK | |
| 60℃90%RH x 1000hrs. | OK | OK | OK | OK | |
| 85℃85%RH x 1000hrs. | × | OK | - | OK | |
| -40℃ x 1000hrs. | OK | OK | - | OK | |
| Recommended objects | PET, glass | PET, glass, TAC | PET, glass, TAC | glass | |
| Usages | LCD | LCD | LCD |
window covering |
|
※Optical measurement values are in accordance with JIS K 7105.
